Product Details
Key Features
- Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8″ mm bore)
- Perfect for high speed off-road applications such as rock bouncers and rock racers
- High-quality 4-pole sintered rotor
- Polarity protection – magnetic encoder inside the motor guarantees consistency between three phases’ signals and always outputs precise signals indicated by rotor position.

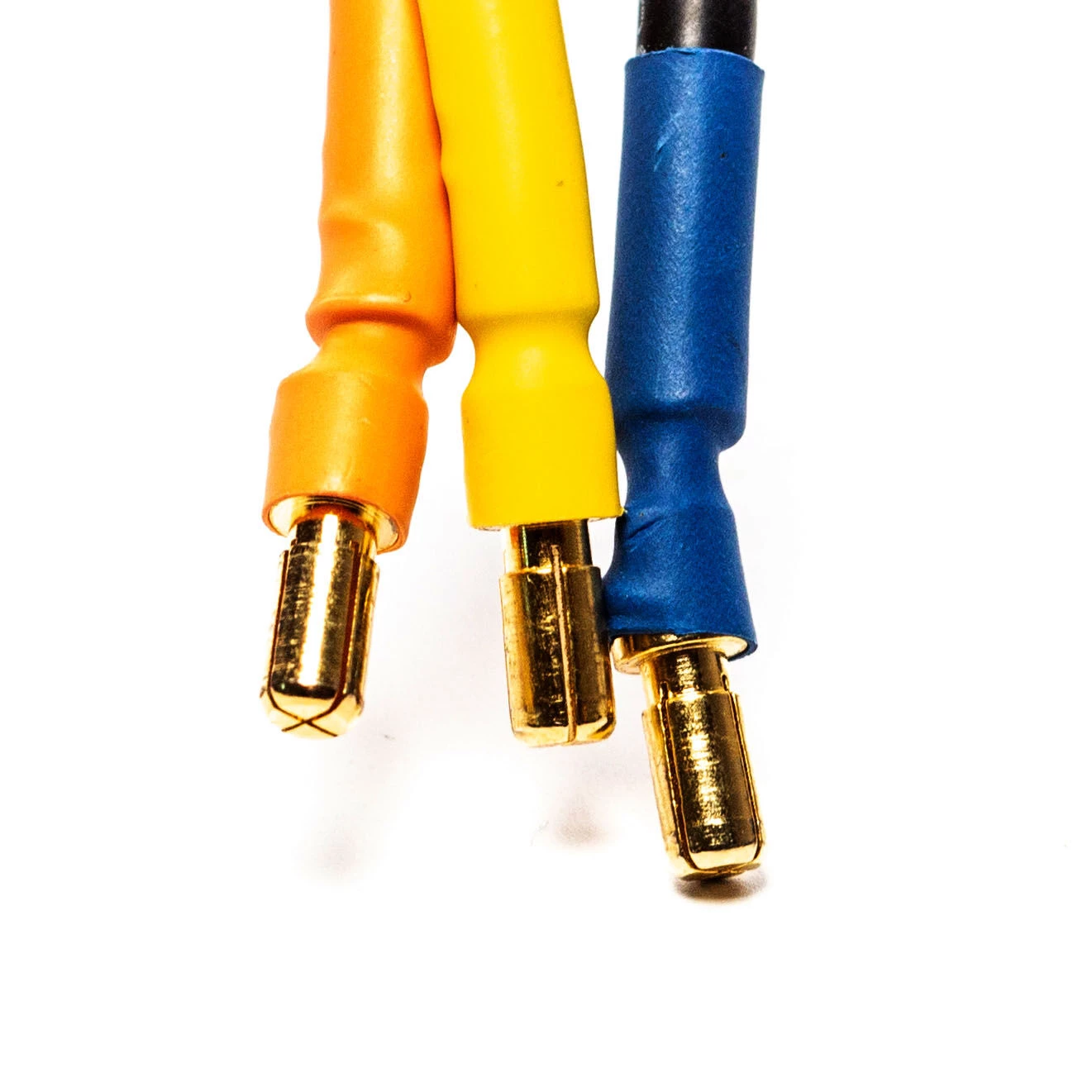

- 3.5mm Gold Plated Bullet Connectors
Product Specifications
- Application: 1/10 scale crawlers, rock racers, and trailers running on 2S-3S LiPo power
- Bushing Or Bearing: Bearing
- Connector Type: 3.5mm Bullet
- Forward: Yes
- Input Voltage: 7.4 – 11.1V
- Maximum Continuous Current: 50A
- Motor Size: 540-2800Kv Brushless Sensored
- Motor Type: Brushless – Sensored
- Number of Poles: 4
- Outer Diameter: 1.42″ (36 mm)
- Product Length: 2.27″ (58 mm)
- Recommended Speed Control: Spektrum Firma 60A Sensored Brushless Smart Crawler ESC
- Reverse: Yes
- RPM/Volt (Kv): 2800Kv
- Shaft Diameter: 0.125″ (3 mm)
- Water-Resistant: Yes
